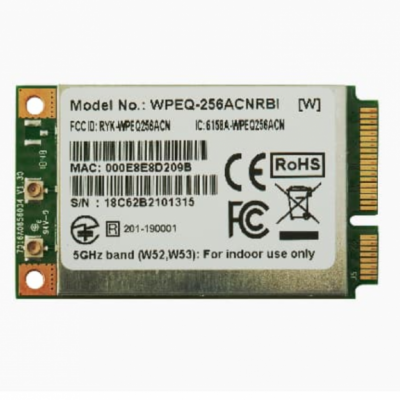

WPEQ-256ACNRBI
AP6275SDPR
WPEQ-450AC

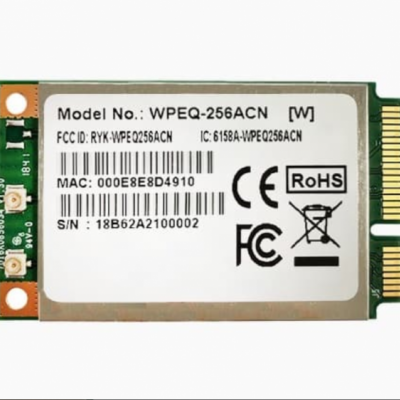

WPEQ-256ACN
WPEA-352ACNRBI
WPEA-352ACNRB
AP6275SDSR
WNFT-238AX(BT)
產品詳情
歡迎來到上海勤諾智能通訊科技有限公司！
- 銷售熱線：15618696870
- 移動版
點擊圖片查看原圖產品價格 面議
最小起訂量：10 片 可售數量：100 片
WIFI快速漫游網卡
￥400.00/片
企業名片
SparkLAN WPET-239ACN(BT) 是一款高度集成的單芯片無線 LAN (WLAN)、BT Combo USB 模塊，支持 2 流 802.11ac 解決方案，具有多用戶 MIMO（多輸入多輸出）無線 LAN (WLAN) . 它在單芯片 USB 模塊中集成了 2Tx2R WLAN MAC、基帶和雙頻射頻。WPET-239ACN(BT) 通過一個 USB 端口為 M2M（機器對機器）連接產品/設備提供了一種經濟高效的解決方案。
WPET-239ACN(BT) 802.11ac/abgn 2Tx2R USB WLAN/BT 組合模塊，具有各種 USB 輸入格式和內部打印或外部 RF 天線連接器，用于高性能無線 LAN 和 BT 設備。它旨在以低功耗提供完整的 M2M 連接和出色的性價比，并增強穩健系統和應用程序的優勢。
適用應用
應用包括便攜式手持設備、瘦客戶端計算機、醫療設備、網絡安全和監控、3D打印機、電視、機頂盒、POS、數字標牌、游戲機、機器人機械、工業平板電腦等。
STANDARD |
||
| WI-FI | IEEE 802.11ac/a/b/g/n | |
| Chipset | Realtek RTL8822CU | |
| Host Interface | WLAN : USB | |
RADIO |
||
| Antenna | 2 x IPEX MHF1 connectors(ANT0僅用于WLAN，ANT1用于WLAN+BT) | |
| Operating Frequency | 802.11ac/a/b/g/n ISM Band | |
| 2.412GHz~2.484GHz
5.150GHz~5.850GHz *Subject to local regulations |
||
MODULATIONS |
|
| 802.11b | DSSS (DBPSK, DQPSK, CCK) |
| 802.11g | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) |
| 802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) |
POWER & SENSITIVITY |
||
| WiFi | Power – TX (± 2dBm) | Sensitivity – RX |
| 11b @11Mbps | 17dBm | ≤ -76dBm |
| 11g @ 54Mbps | 16dBm | ≤ -65dBm |
| 11gn HT20 @ MCS 7 | 15dBm | ≤ -64dBm |
| 11gn HT40 @ MCS 7 | 15dBm | ≤ -61dBm |
| 11a @ 54Mbps | 15dBm | ≤ -70dBm |
| 11an HT20 @ MCS 7 | 14dBm | ≤ -60dBm |
| 11an HT40 @ MCS 7 | 14dBm | ≤ -60dBm |
| 11ac VHT80 @ MCS 9 | 11dBm | ≤ -51dBm |
POWER CONSUMPTION |
||
| Continue TX | 600mA | |
| Continue RX | 350mA | |
ENVIRONMENTAL |
||
| Operating Voltage | DC 3.3V | |
| Temperature Range | -20~ +70°C (Operating) | -40 ~ +85°C (Storing) |
| Humidity(Non-Condensing) | 5~ 95% (Operating) | 5 ~ 90% (Storing) |
SIZE |
||
| Dimension (MM) | 29.9mm(±0.3mm) x 26.6mm(±0.3mm) x 3.0mm(±0.3mm) | |
| Weight | 2.76g | |
SOFTWARE |
|
| Driver | Windows |
| Linux | |
| Android | |
| Security | 64/128-bits WEP, WPA, WPA2,WPA3,802.1x |
Miscellaneous |
||
| Warranty Period | 12 Month | |
| HS Code | 8517620050 | |
 |
 |
 |
 |
| USA | EU Region | Japan | Canada |
 |
 |
||
| ROHS | REACH |
